0.75-1.5KW Power Anti-wind Aluminium High Speed Spiral Rolling Door For Ambient Food Processing Plants
Product Overview
In ambient food processing facilities, maintaining hygiene, workflow efficiency, and controlled air movement is critical. Production areas often require frequent access for personnel, carts, and forklifts while still preventing contamination between zones.
The Spiral High Speed Door is specifically designed for high-traffic food processing environments without refrigeration, combining fast opening speed, rigid aluminum panels, and a non-contact spiral track system. It ensures smooth logistics flow while supporting hygiene management and operational efficiency.
Also known as Turbo High Speed Door, Rigid Spiral High Speed Door, or Spiral Lift High Speed Door, this solution is widely used in modern food factories.
Product Specifications
| Parameter |
Description |
| Maximum Available Size |
Door width: 1000–7000 mm
Door height: 1500–5000 mm |
| Lifting Mechanism |
The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel. |
| Operating speed |
Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable) |
| Door panel materials |
The aluminum alloy door panel has a width of 120mm and a standard thickness of 24mm, with two reinforcing ribs inside. The door panel is filled with polyurethane foam, the aluminum alloy door sheet thickness is 1.2mm, the door hinge thickness is 45mm, and the spiral track thickness is 10mm. Various colors are available. |
| Sealing performance |
Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door. |
| Wind resistance |
Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale. |
| Manual functions |
In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction. |
| Switching method |
Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation. |
| Reserved port |
The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility. |

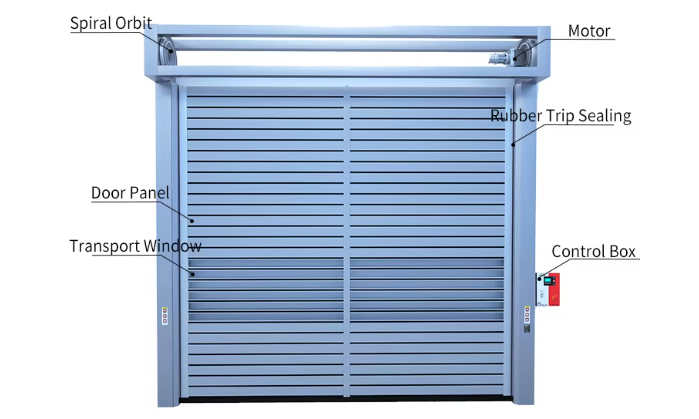

Details Parts of Door
Typical Applications in Food Processing Plants (Ambient Areas)
- Raw material preparation areas
- Processing line entrances
- Packaging workshops
- Finished product staging zones
- Internal passages between clean and non-clean areas
- Logistics corridors inside food factories
These areas benefit from fast access and effective separation without temperature control requirements.
Key Features of Spiral High Speed Doors
Rigid Aluminum Door Panels
High-strength aluminum panels ensure excellent stability and resistance to deformation, ideal for frequent forklift traffic.
Spiral Track Structure
The door panels lift vertically along a non-contact spiral track, preventing friction, reducing wear, and limiting dust accumulation.
High-Speed Servo Motor System
Fast and precise opening and closing supports high-cycle industrial operation with low noise.
Smooth, Easy-to-Clean Surface
Flat panel design allows easy cleaning, supporting hygiene standards in food processing environments.
Advantages for Ambient Food Production Areas
- Reduces air exchange between processing zones
- Improves material flow efficiency
- Supports hygiene zoning management
- Low maintenance compared to fabric doors
- Long service life under continuous operation
As an industrial spiral high speed door, it is engineered for demanding production schedules.
FAQs
Is a Spiral High Speed Door suitable for ambient food processing plants?
Yes, it is ideal for non-refrigerated food production and packaging areas.
Is the door easy to clean?
Yes, the rigid aluminum panels feature smooth surfaces for easy cleaning.
Can it be used for internal separation inside food factories?
Absolutely. It is commonly used to separate processing zones.
Do you support OEM and export projects?
Yes, we are a professional Spiral High Speed Door manufacturer and supplier offering OEM services.
