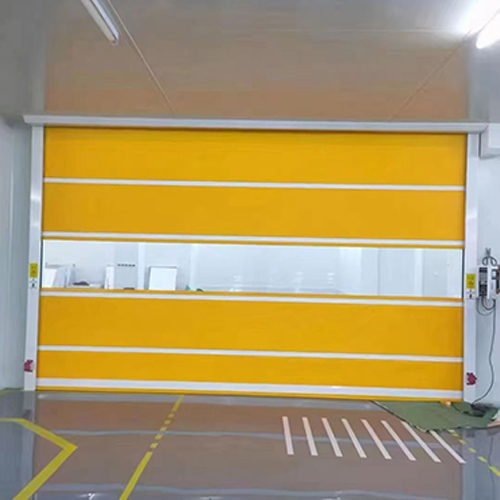

Industrial High Speed Door For Agricultural Production – Efficient Farm Processing Doors
The Industrial High Speed Door for Agricultural Production is designed for modern farms, agricultural processing plants, and agro-industrial facilities where efficiency, hygiene, and environmental control are essential.
In agricultural environments such as grain processing, vegetable sorting, fruit packing, and livestock-related facilities, frequent movement of goods and equipment can lead to dust, insects, temperature loss, and contamination. This high-speed door provides fast operation, tight sealing, and durable construction, helping farms improve productivity while maintaining cleaner and more controlled processing areas.
Product Specifications:
| Parameter |
Description |
| Material |
PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size |
Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed |
Opening Speed: 0.6 - 1.2 m/s (adjustable); Closing Speed: 0.6 m/s (adjustable) |
| Curtain Material |
0.8 - 2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power |
0.75-1.5KW (depending on size & speed) |
| Temperature Range |
-10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance |
High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance |
Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function |
In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements |
220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection |
IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods |
Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
Product Advantages
1️⃣ Improved Processing Efficiency
-
Fast opening and closing reduces waiting time for forklifts and workers
-
Designed for high-frequency operation, supporting continuous agricultural workflows
2️⃣ Hygiene & Contamination Control
-
Smooth, easy-to-clean curtain surface
-
Reduces dust, insects, and debris entering processing zones
-
Supports hygiene requirements in food-grade agricultural processing
3️⃣ Energy Saving & Environmental Control
4️⃣ Safe & Reliable Operation
5️⃣ Durable & Low Maintenance
-
Resistant to moisture, dust, and harsh farm environments
-
Long service life with minimal maintenance requirements
Product Features
-
High-Speed Operation: Opening speed up to 1.2 m/s (adjustable), closing speed 0.6 m/s
-
Wide Size Range: Door width 1000–6000 mm, height 1500–6000 mm
-
Curtain Material: PVC curtain, 0.8–2.0 mm thickness, suitable for agricultural environments
-
Frame Material: Galvanized steel (standard), stainless steel optional
-
Advanced Control System: DSP-based servo motor, LED fault display, reverse wiring protection
-
Sealing System: Bottom airbag or soft safety edge, side brush seals
-
Safety Protection: Infrared photoelectric sensors, emergency stop
-
Manual Override: Emergency manual opening during power failure
Applications
-
Agricultural processing plants
-
Fruit and vegetable sorting and packing lines
-
Grain storage and handling facilities
-
Livestock feed processing areas
-
Farm logistics and storage warehouses
-
Temperature-controlled agricultural storage zones
Frequently Asked Questions (FAQ)
Q1: Is this high speed door suitable for agricultural processing environments?
Yes. It is designed to withstand dust, moisture, and frequent use while supporting hygiene and environmental control in agricultural facilities.
Q2: Can it handle high-frequency daily operation?
Yes. The servo motor system supports hundreds to over 1,000 cycles per day, ideal for busy farm processing lines.
Q3: Does the door help reduce dust and insect intrusion?
Yes. Tight sealing with side brush seals and bottom airbag significantly reduces dust, insects, and debris entering controlled areas.
Q4: What materials are available for agricultural use?
Standard configuration includes a durable PVC curtain and galvanized steel frame. Stainless steel frames are optional for higher hygiene requirements.
Detailed Feature Example: High-Speed Servo Control System
One of the most important features for agricultural production is fast and reliable access.
-
Servo Motor with Closed-Loop Control: Torque, position, and speed loops ensure smooth and accurate door movement.
-
High-Frequency Capability: Designed for 1,000+ cycles/day, suitable for continuous farm processing operations.
-
Adjustable Speed: Opening speed up to 1.2 m/s, closing speed 0.6 m/s, adjustable according to site needs.
-
Safety & Reliability: LED fault display, reverse wiring protection, and emergency manual operation ensure stable performance.
This system helps agricultural facilities increase throughput, reduce downtime, and maintain a cleaner working environment.
