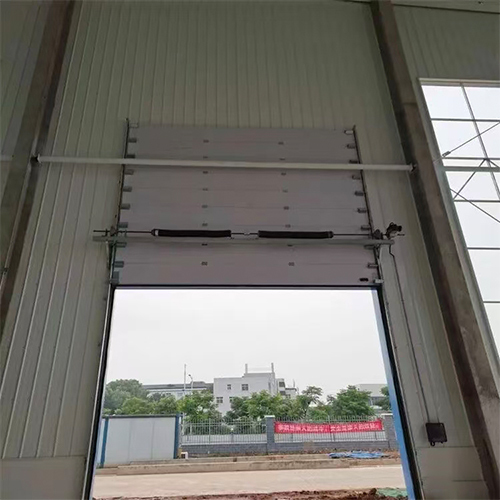

Industrial Sectional Overhead Door for Cross-Docking Facilities
An Industrial Sectional Overhead Door, also known as an Industrial Lift-up Door or Warehouse Lift-up Door, is a critical component for cross-docking facilities. Designed for high-frequency material flow, this automatic industrial door enables fast, efficient transfer of goods between inbound and outbound trucks, optimizing warehouse operations and reducing dwell time.
Overview: Sectional Doors in Cross-Docking
A cross-docking facility requires doors that can open and close rapidly to support continuous vehicle turnover. The industrial sectional door lifts vertically along reinforced tracks, staying parallel to the ceiling, and ensures smooth, secure access for forklifts, pallet jacks, and trucks.
Basic Structure & Operating Principle
The door is composed of hinged sectional panels, reinforced tracks, torsion springs, and optional electric motor drive. During operation, the industrial lift-up door with tracks provides stable and fast vertical movement, ideal for high-volume warehouse lift-up door environments.
Difference Between Sectional Doors and Other Industrial Doors
Compared with rolling shutters or fabric high-speed doors, a steel or aluminum sectional door provides better insulation, durability, and heavy-duty performance, making it ideal for cross-docking warehouses with multiple daily dock cycles.
Why Choose an Industrial Sectional Door for Your Cross-Docking Facility
High-Speed Operation for Rapid Turnover
The high-speed sectional door allows simultaneous loading and unloading, reducing bottlenecks in cross-docking logistics.
Space-Saving Vertical Lifting Design
The vertical lifting motion keeps the dock area clear, allowing trucks and forklifts to operate efficiently.
Heavy-Duty Performance for Continuous Use
Built for repeated daily operation, this heavy duty industrial door withstands constant opening and closing cycles in busy cross-docking centers.
Key Features
Reinforced Panel Construction
Panels are made of steel or aluminum, forming a durable industrial sectional door capable of withstanding frequent impacts.
Advanced Track & Spring System
Reinforced tracks and torsion springs ensure smooth movement and long life, even under high-cycle conditions.
Insulated & Energy-Efficient Options
Insulated sectional doors maintain controlled temperatures in climate-sensitive cross-docking areas.
Safety Features
Spring break protection, anti-fall devices, and optional sensors provide maximum safety for personnel and equipment.
Product Specifications
| Item |
Description |
| Material |
SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral |
0.326 / 0.45mm / 0.55mm / 0.6mm |
| Thickness of Guiding Rail |
Gualvanized Steel,thickness: 2mm |
| Thickness of Panel |
40mm / 50mm |
| Width of Panel |
430mm / 550mm |
| Density of Sandwiches |
48kg/m3 |
| Surface Treatment |
Power coating,thickness of coating:30um |
| Heat Preservation |
4.5W/m.h |
| Wind Resistance |
Beaufort scale 11, 28m/s |
| Noise Level: |
≤60db |
| Sound Insulation Level |
24 Db |
| Fire Retardation: |
Class A |
| Speed |
0.2-0.4m / s |
| Max Dimension |
12m * 8m |
| Sealing Performance |
EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord |
Flexible ,3.8mm |
| Power Supply |
380V 50Hz / 220V 50Hz |
| Service Life |
10 years |
| Emergency Operation |
Manual Hoist Chain to open the door in case of power off |
| Balance System |
a. Balance the weight of door through the torsion spring
b. Easily manual operation: 140N to open
c. Spring brake device:Anti-broken device
d. Service Life:100 thousand open & close
e. Prolong the service life of the motor |
| Safety |
Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item |
Window,pedestrian door |
Application Scenarios in Cross-Docking Facilities
-
Inbound & Outbound Truck Loading – Rapid transfer between vehicles.
-
Pallet Handling & Sorting Areas – Efficient material movement without delays.
-
High-Traffic Dock Zones – Supports continuous truck turnaround and high-volume operations.
-
Temperature-Controlled Cross-Docking – Insulated doors maintain optimal storage conditions.
-
Multi-Tenant Logistics Hubs – Flexible solutions for handling multiple clients simultaneously.
Installation & Maintenance
-
Flexible installation compatible with steel, concrete, or modular structures.
-
Modular design ensures easy maintenance and long-term reliability for high-cycle industrial doors.
Installation method
Frequently Asked Questions (FAQ)
Q1: Can these doors handle continuous high-frequency dock operations?
Yes, designed for cross-docking facilities with multiple daily loading cycles.
Q2: Are insulated doors available for climate-sensitive goods?
Yes, insulated options reduce temperature fluctuations and energy loss.
Q3: Can doors be customized for various dock sizes and layouts?
Yes, panels, size, and operation mode can all be customized.
Q4: Are remote control and automation systems supported?
Yes, doors can integrate with automation systems, remote control, and push-button operation.
