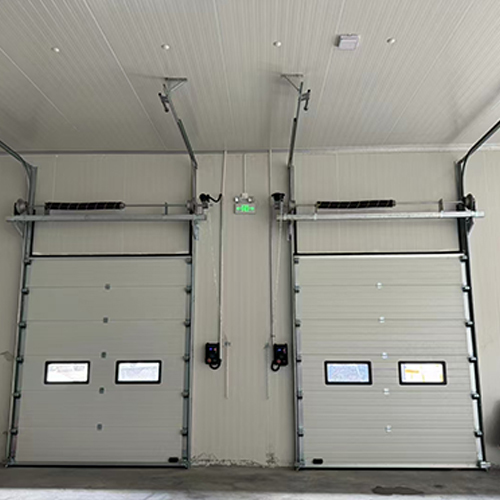

Sectional Overhead Door Factory Space-saving Solution Designed To Electrical Equipment Manufacturing Plants
Electrical equipment manufacturing plants produce sensitive components such as switchgear, transformers, control panels, and power distribution units. These facilities require controlled environments, smooth material flow, and reliable access points between production zones. Industrial Sectional Doors offer a stable, space-saving solution designed to support efficient manufacturing while protecting high-value electrical equipment.
Manufacturing Challenges in Electrical Equipment Plants
Environmental Control for Precision Assembly
Dust, humidity, and airflow must be controlled to protect electrical components.
Efficient Movement of Materials & Finished Products
Doors must support frequent forklift and pallet traffic without delays.
Zoning Between Production Stages
Clear separation between fabrication, assembly, testing, and storage areas.
How Sectional Doors Support Electrical Manufacturing Processes
Vertical Lift Operation for Clean Layouts
Ceiling-mounted tracks preserve floor and wall space for production equipment.
Stable Opening & Closing Performance
Ensures predictable operation during high-frequency use.
Flexible Configuration for Internal & External Openings
Suitable for workshops, loading areas, and internal partitions.
Product Specifications
| Item |
Description |
| Material |
SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral |
0.326 / 0.45mm / 0.55mm / 0.6mm |
| Thickness of Guiding Rail |
Gualvanized Steel,thickness: 2mm |
| Thickness of Panel |
40mm / 50mm |
| Width of Panel |
430mm / 550mm |
| Density of Sandwiches |
48kg/m3 |
| Surface Treatment |
Power coating,thickness of coating:30um |
| Heat Preservation |
4.5W/m.h |
| Wind Resistance |
Beaufort scale 11, 28m/s |
| Noise Level: |
≤60db |
| Sound Insulation Level |
24 Db |
| Fire Retardation: |
Class A |
| Speed |
0.2-0.4m / s |
| Max Dimension |
12m * 8m |
| Sealing Performance |
EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord |
Flexible ,3.8mm |
| Power Supply |
380V 50Hz / 220V 50Hz |
| Service Life |
10 years |
| Emergency Operation |
Manual Hoist Chain to open the door in case of power off |
| Balance System |
a. Balance the weight of door through the torsion spring
b. Easily manual operation: 140N to open
c. Spring brake device:Anti-broken device
d. Service Life:100 thousand open & close
e. Prolong the service life of the motor |
| Safety |
Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item |
Window,pedestrian door |
Installation method
Door Construction for Electrical Equipment Factories
Insulated Steel Panels
Helps maintain stable temperature and humidity conditions.
High-Performance Sealing System
Minimizes dust intrusion and air exchange.
Robust Frame & Track Design
Supports continuous industrial operation.
Environmental & Process Control Advantages
Dust & Particle Reduction
Supports cleaner environments for electrical assembly lines.
Thermal Insulation Performance
Improves energy efficiency in climate-controlled workshops.
Noise Reduction Between Work Areas
Helps separate testing zones from assembly areas.
Typical Applications Within Electrical Equipment Plants
Production & Assembly Workshops
Separates work zones while maintaining smooth material flow.
Testing & Quality Control Areas
Supports controlled environments for electrical testing.
Finished Goods Storage Areas
Protects completed products before shipment.
Inbound & Outbound Loading Zones
Ensures reliable access for logistics operations.
Customization for Manufacturing Facilities
Non-Standard Sizes for Equipment Handling
Custom dimensions for large cabinets or transformers.
Personnel Pass Doors
Improves staff movement without full door opening.
Surface Finish Options
Adapted for clean, industrial, or corrosion-resistant environments.
FAQ – Electrical Equipment Manufacturing Plants
Are sectional doors suitable for clean manufacturing environments?
Yes, insulated panels and sealing systems help maintain cleaner conditions.
Can sectional doors handle high-frequency daily operation?
Yes, they are designed for frequent use in industrial production settings.
Can doors be customized for internal production zoning?
Yes, size, control, and configuration can be tailored to factory layouts.
Sectional Door Solutions for Electrical Equipment Manufacturing
Engineering Support & OEM Supply
Technical assistance for layout planning and project specification.
Global Supply for Industrial Manufacturing Projects
Suitable for domestic and international electrical equipment factories.
